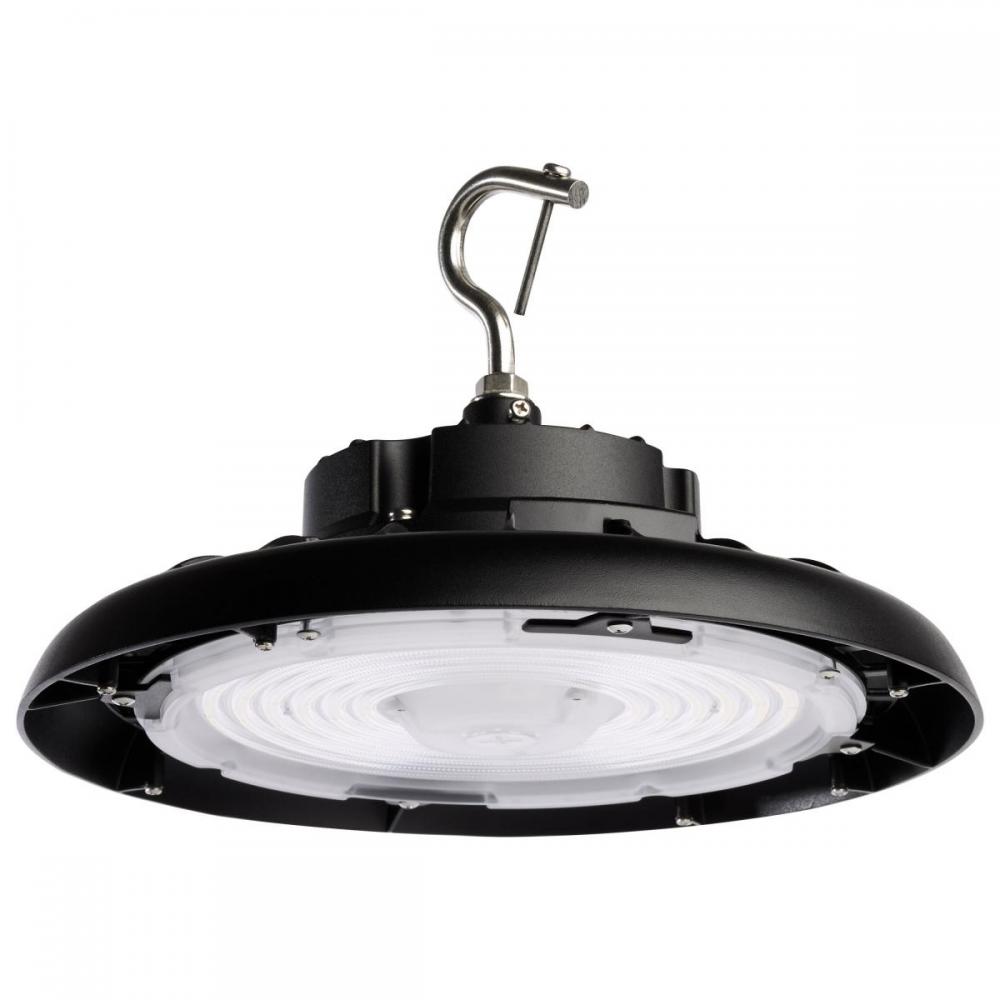

Wattage 80W/100W/120W and CCT Selectable 3K/4K/5K LED UFO High Bay; 100-277 Volt; Black Finish (65/770R2)
Wattage 80W/100W/120W and CCT Selectable 3K/4K/5K LED UFO High Bay; 100-277 Volt; Black Finish
Product Specification
Item #
65/770R2
Dimensions
Height: 7.30"
Width: 11.00"
Additional product details
Category
Utility
Subcategory
Other Utility
Option
LED , Prop 65
Lumens
1101-1600
Kelvin
4001-4500
Category
Hi-Bay
Sub Category
UFO
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White to Natural Light
Diameter
11
Dimmable
Yes-Dimmable
Each Height
4.92
Each Length
11.81
Each Width
11.81
Lumens
11840L-18600L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Wire Length
72
Amps
0.667-0.289/0.833-0.361/1.00-0.433A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
90
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube
0.3971
Each Quantity
1
Efficacy
148.00/152.20/155.00 LPW
FCC Compliant
Yes
Feature 1
ColorQuick CCT Selectable
Feature 2
PowerQuick Wattage Selectable
Feature 3
0-10V Dimming Capable
Feature 4
6 Foot Whip with Dimming Wires Included
Feature 5
Locking Hook Mount Included
Feature 6
Additional Mounting Accessories Available
Feature 7
5 Year warranty
Finish Family
Black
Has Emergency Battery
No
HID Equiv
150W-250W
Impact Rating (IK)
IK08
Incandescent Equivalent
500W/600W/1000W
Includes
Locking Hanging Hook; 6 Foot Whip
Indoor Outdoor
Indoor
Installation Notes
Mounting Height: Up to 20 feet
IP Rating
IP65
JA8 Compliant
No
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Long Description
SATCO NUVO's 65-770R2 Round High Bay Field Selectable Fixture is an energy efficient and maintenance-free solution to traditional HID high bay fixtures. This luminaire features ColorQuick and PowerQuick technology allowing a choice of three wattages, 8
Material
Die-Cast Aluminum
Mounting Procedure
Pendant Hanging Surface
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Order In Multiples Of
1
Pack Type
Brown Box
Photocell
Optional Add-On
Power Factor
0.9
Quantity In Pack
1
R9 Value
2
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO NUVO's Round High Bay Field Selectable fixtures are an energy efficient and maintenance-free solution to traditional HID high bay lighting. Field selectable, these luminaires feature ColorQuick and PowerQuick technology allowing a choice of three
Safety Listing
cULus - Certified
SDS class
LED_Fixture
Short Description
LED UFO HIGHBAY CCT & WATT ADJ
Specification Notes
Input Current at 120V: 086A
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
Yes
Weight Lb.
4.53
Finish
Additional options that would change other selections
