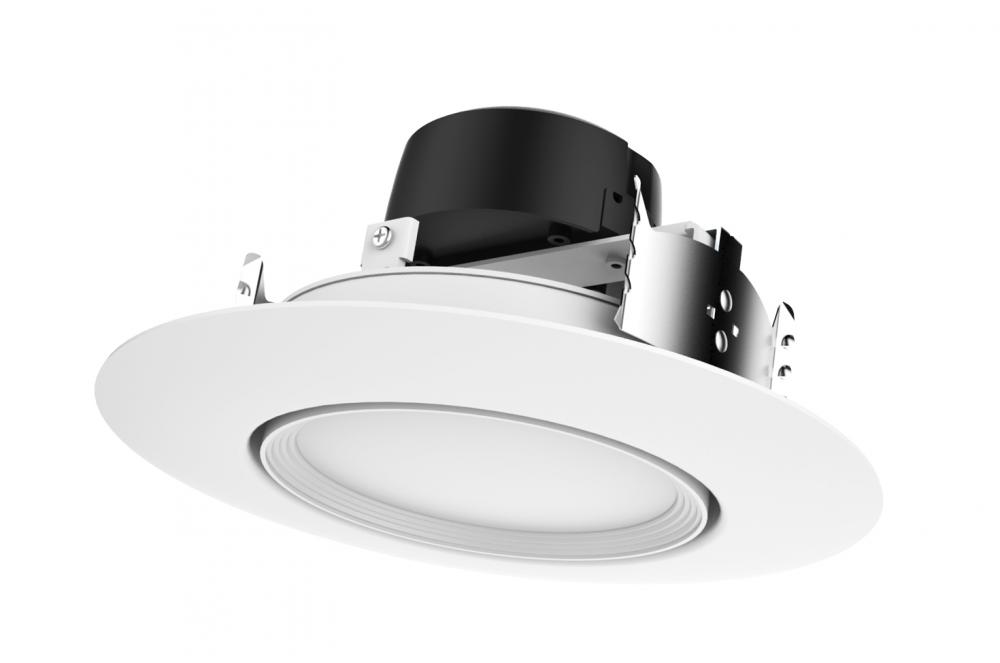

9 watt LED Directional Retrofit Downlight - Gimbaled; 5"-6"; 2700K; 120 volts; Dimmable; (S39472)
9 watt LED Directional Retrofit Downlight - Gimbaled; 5"-6"; 2700K; 120 volts; Dimmable; White Finish
Product Specification
Item #
S39472
Dimensions
Height: 3.91"
Width: 7.41"
Finish
White
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
LED
, Prop 65
Category
Recessed
Sub Category
Retrofits
Additional Info
Trim material is Thermo Plastic; Trim color is White
Bulb Hours
50000
Bulb Kelvin
Warm White
Bulb Shape
Integrated LED
Bulb Type
LED
Diameter
7.41
Dimmable
Yes-Dimmable
Harmonized Codes
8539.50.0091
Lumens
800L
Ship Carton Height
8.07
Ship Carton Length
8.27
Ship Carton Width
4.33
Warranty
5 Year Limited - Fixtures
Amps
0.075A
ANSI Base
E26 Adapter
BAA Compliant
No
Beam Spread
90
CA Prop-65
Lead
Can Size
5-6 in.
Carton Cubic Feet
0.1672
Cartons Per Unit
1
CCT Selectable
No
CEC
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Connection
Direct Wired
Country Of Origin
China
CRI
90+
Dimmable Down To
100 to 10 percent
Dimming Type
Forward Phase or Reverse Phase or Phase Selectable
Efficacy
88.89 LPW
FCC Compliant
Yes
Feature 1
Warm white light
Feature 2
LED Directional
Feature 3
Damp rated for indoor use
Feature 4
H:3.91 W:7.41
Feature 5
Round, White/Frosted
Finish Family
White
Fixture shape
Round
Incandescent Equivalent
65W
Indoor Outdoor
Indoor
JA8 Compliant
Yes
Lens Finish
Frost
Lens Material
Plastic (PS)
Long Description
Satco's S39472 9-watt, 5-6 inch LED retrofit downlight, features a gimbaled trim and is directional, allowing for focused lighting wherever you need it. The fixture offers warm white light and a 90 degree beam angle. Dimmable and energy efficient, this
Material
Thermo Plastic (PBT)
Mounting Procedure
Ceiling
Operating Frequency
60Hz
Operating Temprature
-20C (-4F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.95
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Satco's 9-watt, 5-6 inch LED retrofit downlight, features a gimbaled trim and is directional, allowing for focused lighting wherever you need it. The fixture offers warm white light and a 90 degree beam angle. Dimmable and energy efficient, this fixtur
Safety Listing
cULus - Classified;cULus - Certified
SDS class
LED_Fixture
Short Description
9WLED/DIR/5-6/27K/120V
Specification Notes
Aiming Angle: 30dg
Temperature (CCT)
2700K
Title 20 Compliant
Yes
Title 24 Compliant
Yes
Trim Color
White
Wattage Selectable
No
Weight Lb.
0.86
